A Uniform Magnetic Field B That Is Perpendicular To The Plane Of The Page

The inducecd emf in the wire loop of radius b is ε. B The magnetic forces acting on sides 2 and 4.

General Physics Ii

A single circular loop of wire in the plane out of the page is perpendicular to a uniform magnetic field B directed out of the page as shown.

A uniform magnetic field b that is perpendicular to the plane of the page. If the magnitude of the magnetic field is decreasing then the induced current in the wire loop is. In other words it is the radius of the circular motion of a charged particle in the presence of a uniform magnetic field. Figure 841 a A rectangular current loop placed in a uniform magnetic field.

If the field is in a vacuum the magnetic field is the dominant factor determining the motion. Course Title PHYSICS 12. The figure shows a convex lens of focal length 12 cm lying in a uniform magnetic field Bof magnitude 12 T parallel to its principal axis.

Rank the five regions indicated on the graph according to the magnitude of the emf induced in the loop starting with the smallest. The field is confined to a region of radius a where a b and is changing at a constant rate. A uniform magnetic field B that perpendicular to the planc of the page now passes through the loops as shown.

What is the induced emf in the wire loop of radius 2b -. The conductor carrying current I to the left and three. The induced emf in the wire loop of radius b is e.

Example 141 The figure below shows two views of a circular loop of radius 3 cm placed within a uniform magnetic field B magnitude 02 T. What happens when we place a rectangular loop carrying a current I in the xy plane and switch on a uniform magnetic field BBˆi G which runs parallel to the plane of the loop as shown in Figure 841a. The plane of the loop is parallel to the page and the magnetic field is directed perpendicular to and out of the page as indicated by the blue dots.

A uniform magnetic field b that is perpendicular to the plane of the page now passes through the loops as shown. What is the induced emf in the wire loop ofradius 2b- 2b 10 2 ε2 3 ε 4 2e. Click hereto get an answer to your question 3.

A uniform magnetic field exists perpendicular to this. Φ B B A B A BA cos θ. 0 2 T s 1.

A flat circular metal loop of radius r 1 m and resistance of 2 Ohms is at rest in a uniform magnetic field of magnitude B. A What is the direction of the magnetic force on the loop. The field is confined to a region of radius a where a b and is changing at a constant rate.

7 1 0 5 W m. School Narayana Engineering College. The ficld is confined to a region of radius a where a.

The magnetic field changes with time at a steady rate d B d t 0. The field is confined to a region of radius a where a b and is changing at a constant rate. The graph shows the magnitude as a function of time Bt of a uniform magnetic field that is perpendicular to the plane of a conducting loop.

Resistivity of copper 1. The wire has a diameter of 2 mm and a total length of 40 cm. Pages 129 This preview shows page 90 - 93 out of 129 pages.

The induced emf in the wire loop of radius b is ε. Here r called the gyroradius or cyclotron radius is the radius of curvature of the path of a charged particle with mass m and charge q moving at a speed v perpendicular to a magnetic field of strength B. The simplest case occurs when a charged particle moves perpendicular to a uniform B-field Figure PageIndex1.

A uniform magnetic field B that is perpendicular to the plane of the page now passes through the loops as shown. The change per unit time of the magnitude of B is dB dt. A Zero B ε2 C ε D 2ε.

A uniform magnetic field B exists in a direction perpendicular to the plane of a square frame made of copper wire. Outside the circular region B is equal to 0. If the magnitude of the magnetic field is decreasing then the induced current in the wire is A directed out of the paper B directed into the paper C clockwise around the loop.

A single circular loop of wire in the plane of the page is perpendicular to a uniform magnetic field B directed out of the page as shown. The magnetic flux Φ B through an area A is equal to the product of A and the magnetic field perpendicular to it. What is the induced emf in the wire loop of radius 2b.

A magnetic field B is perpendicular to the plane of the page and is uniform in a circular region of radius R as shown in the following figure. In the figure below the magnetic field eqvec B eq in uniform and perpendicular to the plane of the figure pointing out the page. If the magnitude of the magnetic field is decreasing then the induced current in the wire is.

A single circular loop of wire in the plane of the page is perpendicular to a uniform magnetic field B directed into the page as shown. A particle with charge 20 10 3 C and mass 20 10 5 kg is projected perpendicular to the plane of the diagram with a speed of 48 m s 1. Find the current induced in the frame.

A uniform magnetic field B that is perpendicular to the plane of the page now passes through the loops as shown. The field is uniform and the plane of the loop is perpendicular to the field. A uniform magnetic field exists perpendicular to this plane The speeds of the.

Justify the claim that the forces on the sides of the loop are equal and opposite independent of how much of the loop is in the field and do not affect the net force on the loop.

Solved 1 A Magnetic Field Is Perpendicular To The Plane Chegg Com

Solved 13 As Shown Below A Metal Bar Is In Contact With Chegg Com

Magnetic Force On A Charged Particle Ppt Video Online Download

Solved A Rectangle Measuring 30 0 Cm By 40 0 Cm Is Locate Chegg Com

A Conducting Loop Of Radius R Is Present In A Uniform Magnetic Fie

8 3 Motion Of A Charged Particle In A Magnetic Field Introduction To Electricity Magnetism And Circuits

Chapter 29 Examples Examples 1 6 Ppt Download

A Proton Moves Perpendicular To A Uniform Magnetic Field Youtube

Motional Emf Physics

Chapter 29 Magnetic Fields Ppt Download

A Flexible Wire Bent In The Form Of A Circle Is Placed In A Unifor

Solved The Graph Gives The Magnitude B R Of A Uniform Ma Chegg Com

An Electron Moves Perpendicular To A Magnetic Field As Shown In The Figure What Would Be The Direction Of Force Experienced On The Electron

A Charged Particle Enters Into A Uniform Magnetic Field With Veloc

A Uniform Magnetic Field Exists In The Plane Of Paper Pointing Fro

Solved A Cube Of Edge Length L 7 5 Cm Is Positioned As Chegg Com

Solved A Metal Detector Uses A Changing Magnetic Field To Chegg Com

22 5 Force On A Moving Charge In A Magnetic Field Examples And Applications Bcit Physics 0312 Textbook

A Charged Particle Moves Through A Magnetic Field Perpendicular To Its Direction Then Discuss About The Kinetic Energy And Momentum Of The Particle Whether They Remain Constant Or Change Socratic

Shown In Fig Is A Conductor Carrying Current I Find The Magnetic

Ap Multiple Choice Electromagnetism Electrostatic Answers

A Uniform Magnetic Field Of Magnitude 0 50 T Is Directed Perpendicular Youtube

A Conducting Circular Loop Is Placed In A Uniform Magnetic Field

There Is A Magnetic Field Acting In A Plane Perpendicular To This Sheet Of Paper Youtube

A Uniform Magnetic Field B That Is Perpendicular To The Plane Of The Page Now Passes Through The Loops As Shown Sarthaks Econnect Largest Online Education Community

A Rectangular Coil Is Placed In A Region Having A Uniform Magnetic

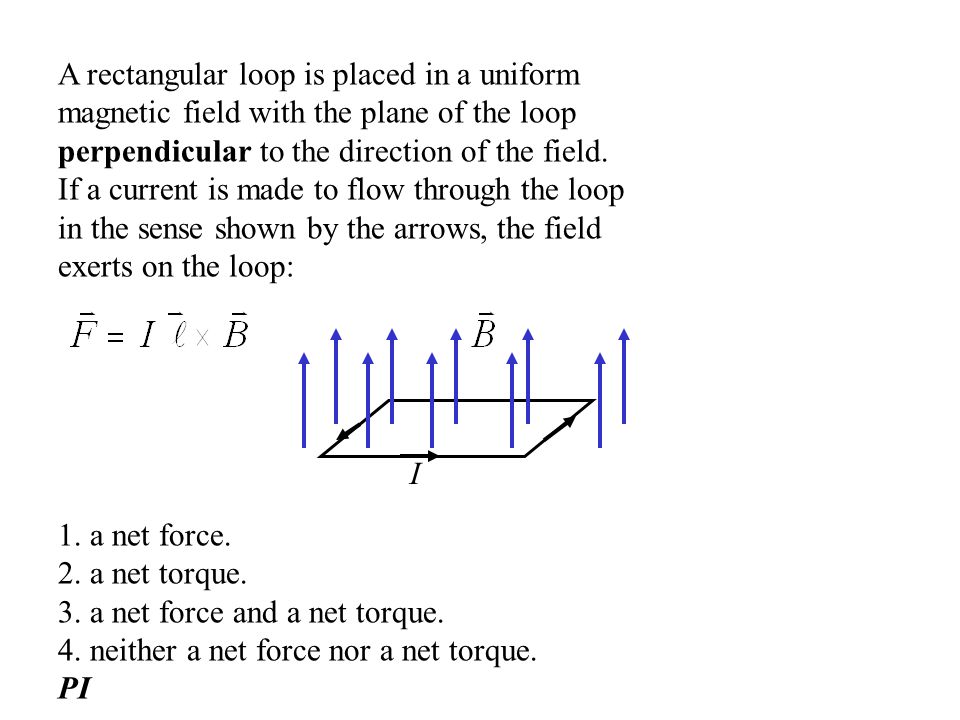

A Rectangular Loop Is Placed In A Uniform Ppt Video Online Download
