Turns and fittings are as shown. No pressure losses in inlet and outlet C1 0 ms C2 0 ms different than free outlet the outlet tube is decreasing the total pressure Dynamic pressure for free outlet is higher than for outlet ducted because the cross section is reduced 1 2.
Ppt Heat Transfer From Extended Surfaces Powerpoint Presentation Free Download Id 5598593
The Ducts Are Of Round Cross Section.
In a duct of uniform cross section total pressure. 60311 Cross Contamination Exhaust ducts and venting systems under positive pressure shall not extend into or pass through ducts or plenums. The ducts are of round cross section. To obtain the average total velocity in ducts of 4 diameter or larger a series of velocity pressure readings must be taken at points of equal area.
Total and static losses are equal. If frictional losses are neglected the mean total pressure at any cross section throughout the duct system is constant. Velocity pressure decreases total pressure decreases and static pressure may.
Turns And Fittings Are As Shown. Next the total pressure drop in each duct run is obtained by summing up the. B c and d 4.
The e ect of viscosity for the di erent geometries under study is. Excluding the pressure loss of the end equipment of the air handling unit the available pressure head of the entire duct system is about 200-300Pa. MEASURING TOTAL AND STATIC PRESSURE.
Diverging sections increase in duct size. A In a duct of uniform cross section the static pressure remains constant b In a duct of uniform cross section the static pressure decreases along length c In a duct of uniform cross section the total pressure decreases along length d In a duct of uniform cross section the dynamic pressure remains constant Ans. Find the cross-sectional area from flow rate and velocity and then by fixing the aspect ratio find the two sides of the.
A formal pattern of sensing points across the duct cross section is recommended. For the duct system the fan is the provider of circulating power and the wind pressure of the fan generally does not exceed 650Pa. Calvert Basing a pressure recovery coefficient on the dynamic head corresponding to the average velocity at inlet and noting that the effective area fraction is defined by.
Estimation of pressure loss in ducts. Compute The Loss In Total Pressure For Each Run Of The Duct System Shown In Fig. Atm and the duct has a uniform cross section v 1v 2 then FTP is equal to the pressure loss due to friction.
Besides the geometry the Reynolds number is varied in a range relevant to the upper airways and speech production 0 Re 10 4. The middle 5 c m contains Hg and two equal ends contain air at the same pressure P 0. Constant cross-sectional areas.
A Use English Units. Following is the recommended procedure for calculating total pressure loss in a single duct section. And Section 14041 for duct leakage tests for other residential buildings.
Thus to find FTP one has to estimate the total pressure loss as air flows through the duct from one section to other. These are known as traverse readings. As air flows through a duct its total pressure drops in the direction of flow.
A tube placed in a duct facing into the direction of the flow will measure the total pressure in the duct. E uav U at any section. Use The Loss Coefficient And The Equivalent Length Approaches Table 12-14 And Compare The Answers.
Duct cross section shape the cross section area in the main ow direction is varied in order to mimic upper airway portions in more detail. Velocity is greater in the center of the duct. 2- Compute the loss in total pressure for each run of the duct system shown below.
For example it may be necessary to change the shape of cross-section from square to rectangular with a small loss of total pressure or it may be required to form a bend in such a way that the distribution of velocity at the exit is as nearly uniform as it can be made. 4 shows recommended Pitot. General rules for duct design Section 382 3.
Each is dependent on the local duct cross-section which determines the flow velocity. Calculate pressure P 0 in cm of Hg. 20 ft 61 m 20 ft 61 m 12 in.
A round duct with a cross sectional area of 06m2 has a perimeter of 275m A rectangular duct with an equal cross sectional area has a perimeter of 387m The rectangular duct therefore requires more metal for its construction this adds more weight and costs to the design. Static pressure can only be determined accurately by measuring it in a manner. If frictional losses are neglected the mean total pressure at any cross section throughout the duct system is constant.
A tube placed in a duct facing into the direction of the flow will measure the total pressure in the duct. A thin tube of uniform cross-section is sealed at both ends. Use the equivalent length approach and SI units.
Total pressure for outlet ducted is 1 2 5 WittSohn AG Oct-14 Base. The following pressure changes are affected in the ducts. Measuring Total and Static Pressure.
P2-pt iPUi1-UZUi2-pomi-pom2 215 E. For example it may be necessary to change the shape of cross-section from square to rectangular with a small loss of total pressure or it may be required to form a bend in such a way that the distribution of velocity at the exit is as nearly uniform as it can be made. 10 ft 12 ft 12in 37 m 30 cm.
When the tube is held at an angle of 6 0 o with the vertical the length of the air column above and below the Hg are 4 6 c m and 4 4. Air flow duct shape duct size roughness altitude air temperature and fittings. A single duct that has the same shape cross section and mass flow is called a duct section or just a section.
Gather input data. Divergence At any point on the streamline of maximum velocity the total pressure is. P pZPUZ Assuming that the static pressure is uniform across any cross-section the actual pressure rise between any two sections is.
To shape a duct in such a way that particular requirements are met. Important requirements of an air conditioning duct Section 381 2. HCD 1.
Duct Cross An Overview Sciencedirect Topics
Physics Reference Physics 9702 Doubts Help Page 202
A U Tube Of Base Length L Filled With The Same Volume Of Two L
A Liquid Of Density Rho Is Flowing With A Speed V Through A Pipe
The Tube Shown Is Of Non Uniform Cross Section The Cross Section Area At A Is Half Of The Cross Section Area At B C And D A Liquid Is Flowing Through
A Wire Has Non Uniform Cross Section As Shown In Figure A Steady Current Flows Through It The Drift Speed Of Electrons At Points P And Q Is Vp And Vq

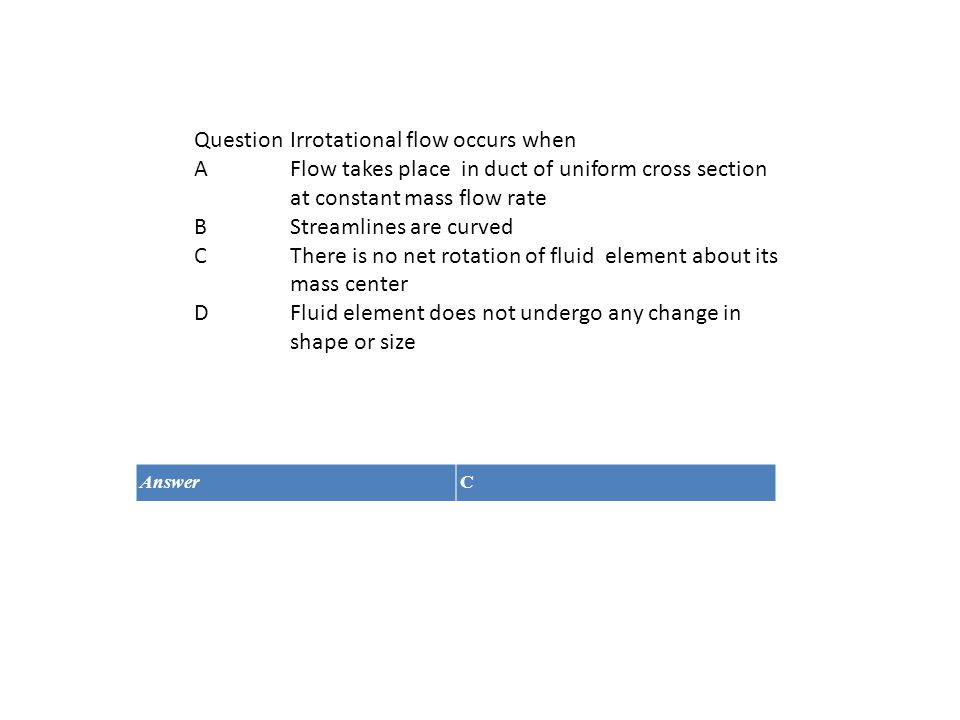

Question In Steady Flow Which One Of The Following Changes With Time Ppt Download
Heat Exchanger Design Kern Method Ppt Download
Applications Of Bernoulli S Law Definition Examples Diagrams
The Area Of Cross Section Of The Wider Tube Shown In Fig Is 800
A U Tube In Which The Cross Sectional Area Of The Limb On The L
An Ideal Fluid Flows In The Pipe As Shown In The Figure The Press
A Bent Tube Of Uniform Cross Section Area A Has A Non Viscous Liquid Of Density
The Figure Shown A Pipe Of Uniform Cross Section Inclined In A Ver

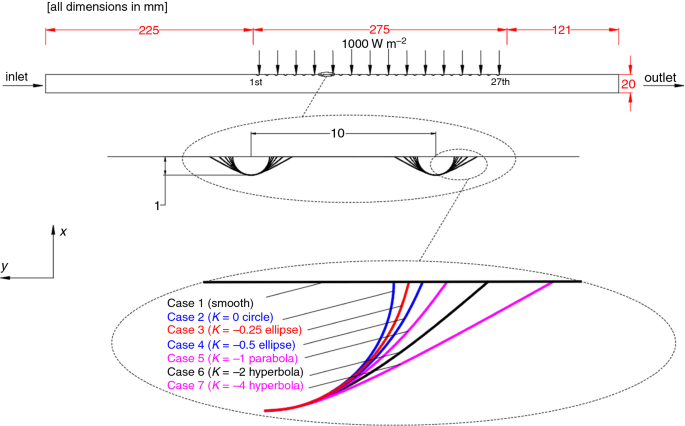

Computational Fluid Dynamics Analysis Of The Heat Transfer And Pressure Drop Of Solar Air Heater With Conic Curve Profile Ribs Springerlink
Http Link Springer Com Content Pdf 10 1007 2f978 3 662 22557 8 1 Pdf
Solved Circular Fins Of Uniform Cross Section With Diameter O Chegg Com
Solved Question 1 Total Marks 20 Marks 1 M S Of Air I Chegg Com
Water Is Flowing Through A Horizontal Pipe In Streamline Flow At The Narrowest Part Of The Pipe
Magnetohydrodynamic Flows In U Shaped Ducts Under A Uniform Transverse Magnetic Field Sciencedirect

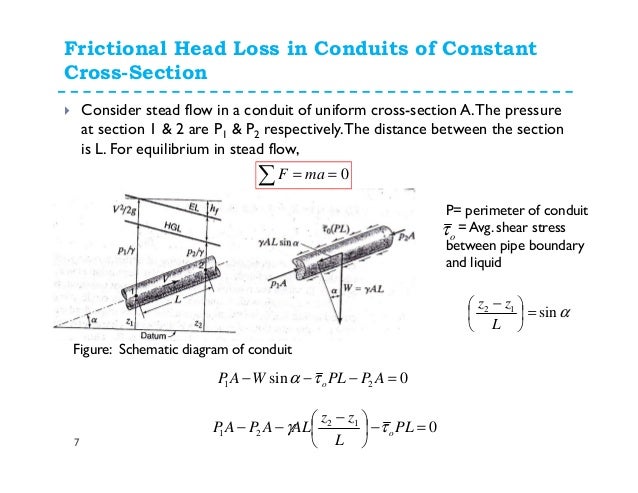

Fluid Mechanicslosses In Pipes Dynamics Of Viscous Flows
